Asymmetric Server Normalization on Cisco ACE

Summertime, I've some time to spend in the lab to try some new scenarios, optimization or try something read on the release notes.
This scenario is mostly a proof of concept as in our DataCenter many applications use server to server load balancing and it requires a too messy configuration to make it work with ASN.
From the Cisco doc :
Asymmetric Server Normalization (ASN) allows the ACE to load balance an initial request from the client to a real server; however, the server directly responds to the client bypassing the ACE. This behavior allows the acceleration of server to client communications and is transparent to the client. When the ACE operates in ASN, it does not perform any network translation when receiving packets destined to the VIP address. Traffic from the client hits the VIP address and the ACE uses the address as the destination address but rewrites the destination MAC address to the address of the real server.
So the match is speed vs. capabilities.
Since the ACE do not control the entire flow (it sees only the packets vs. the VIP) most of the advanced load balancing features aren't usable.
However, in some cases, where speed is the most important thing and the application flow is quite simple it could be a good choice.

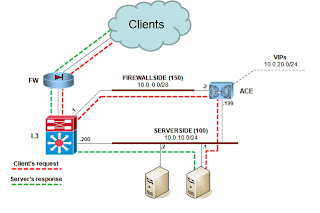

Here's my implementation :





On the ACE :

access-list ACL01 line 8 extended permit ip any any

! The probe should check for the health status of the loopback interface
! on the real server.
probe icmp ICMP
ip address 10.0.20.1
interval 5

rserver host SERVER-10.1
ip address 10.0.10.1
inservice
rserver host SERVER-10.2
ip address 10.0.10.2
inservice

! The transparent command prevents the ACE to make a destination NAT,
! sending the packet as is to the real server.
serverfarm host LAB_20.1:80
transparent
probe ICMP
rserver SERVER-10.1 80
inservice
rserver SERVER-10.2 80
inservice

class-map match-all L4-LAB_20.1:80
2 match virtual-address 10.0.20.1 tcp eq www

policy-map type loadbalance first-match L7-LAB_20.1:80
class class-default
serverfarm LAB_20.1:80
policy-map multi-match L4-POLICYMAPMULTI
class L4-LAB_20.1:80
loadbalance vip inservice
loadbalance policy L7-LAB_20.1:80
loadbalance vip icmp-reply active


service-policy input L4-POLICYMAPMULTI
access-group input ACL01

!The ACE is used as a bare load balancer, diasbling normalization (to make ASN work),
! and icmp-guard.
interface vlan 100
description SERVERSIDE
ip address 1.1.1.199 255.255.255.0
no normalization
no icmp-guard
no shutdown
interface vlan 150
description FIREWALLSIDE
ip address 1.0.0.2 255.255.255.0
no normalization
no icmp-guard
no shutdown

ip route 0.0.0.0 0.0.0.0 1.0.0.1


On the router :

ip route vrf LAB 10.0.20.0 255.255.255.0 10.0.0.2



This way everything works fine. Now it's time to make server to server load balancing work in this scenario.
What I wanted to work is a load balanced server that calls for its VIP being load balanced on itself or on another real server in the same area. Note that this scenario is different since here real server's are one-armed.

The choice to have a point-to-point vlan between the router and the ACE comes with the esigence to control traffic for some feature I needed described further. For simple ASN scenarios the ACE could easily have only one arm on the real servers' vlan (100).


Here's some observations I made :
1) Without any further configuration, server to server loadbalancing doesn't work as there's a loopback interface on the server with the VIP configured on it, you'll never get out of it.
2) You will need both source NAT and destination NAT to make it work.
3) You will have to make the ACE see all of the flow to make the NAT work.
4) You can't use ASN for server to server load balancing

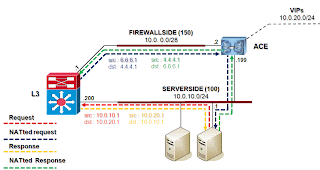

I will not enumerate all of the tries I made to make it work (from which come the observations), here's my solution : double NAT (source and destination) on the router (6513 in this case) so that the ACE treats the connection as a normal external client request.




Here's the router's configuration :

interface Vlan100
ip vrf forwarding LAB
ip address 10.0.10.200 255.255.255.0
ip nat outside
!
interface Vlan150
ip vrf forwarding LAB
ip address 10.0.0.1 255.255.255.0
ip nat inside

ip nat inside source static 10.0.20.1 4.4.4.1
ip nat outside source static 10.0.10.1 6.6.6.1

ip route vrf LAB 10.0.20.0 255.255.255.0 10.0.0.2
ip route vrf LAB 4.4.4.0 255.255.255.0 10.0.0.2
ip route vrf LAB 6.6.6.1 255.255.255.255 10.0.10.199


The last route is a little tricky : as returning packets come from an outside zone to an inside one, packets need to be first routed and the natted. So you'll have to put a "fake" route versus an inside endpoint to make the packet then match the nat rule.

On the real servers you have a route to make all NATted request return by the ACE and not by the default gateway (router). These requests are easily identified by the source address (6.6.6.1).

Note that ASN and server to server load balancing with double NAT (source and destination) can be implemented both on the same box.

Thanks to Daniele and Marco for helping me in the lab.
